Liquid fuels and feedstock
Introduction
The ETM can model various processes for producing liquid fuels and feedstock, ranging from conventional oil refining to advanced synthetic fuel production. These processes convert different types of feedstock (including crude oil, biomass, waste, hydrogen and CO2) into transport fuels and chemical feedstocks such as diesel, kerosene, methanol and naphtha. The processes for liquid fuels and feedstock production can be set in the Liquid fuels and feedstock section of the ETM.
The various processes have specific feedstock input and fuel output. For some processes, different feedstock routes can be set (such as for Fischer-Tropsch and methanol synthesis), which affect the fuel output from the process.
This page provides an overview of the modelled liquid fuel production processes, the possible feedstock input routes, fuel outputs and remarks on important modeling considerations.
Overview of processes
In the table below, the various production processes for liquid fuel and feedstock production are summarised. Note that additional remarks are provided about how the processes are modelled. The slider texts in the Liquid fuels and feedstock section give more information about modelling considerations and technical and financial specifications of each process.
| Process | Energy inputs | Energy outputs | Additional remarks |
|---|---|---|---|
| Oil refineries | Crude oil | Diesel, gasoline, LPG, kerosene, heavy fuel oil (HFO), naphtha, other oil products, refinery gas | Output fractions based on refinery archetype if no refinery present in start year |
| Fischer-Tropsch | Hydrogen, electricity, CO2 | Kerosene (main product), gasoline | Output fractions increased proportionally to account for product output not modelled in the ETM |
| Non-biogenic waste | Kerosene, diesel, naphtha | CO2 emissions captured by default | |
| Biogenic waste | Biokerosene, biodiesel, bionaphtha | CO2 emissions captured by default | |
| Dry biomass | Biokerosene, biodiesel, bionaphtha | CO2 emissions captured by default | |
| Methanol synthesis | Hydrogen, electricity, CO2 | Methanol | - |
| Non-biogenic waste | Methanol | CO2 emissions captured by default | |
| Biogenic waste | Biomethanol | CO2 emissions captured by default | |
| Dry biomass | Biomethanol | CO2 emissions captured by default | |
| Pyrolysis oil production | Non-biogenic waste | Pyrolysis oil, heat | Produces the pyrolysis oil used as feedstock for pyrolysis oil fractionation, see section below for details |
| Pyrolysis bio-oil production | Biogenic waste | Pyrolysis bio-oil, heat | Produces the pyrolysis bio-oil used as feedstock for pyrolysis bio-oil fractionation, see section below for details |
| Dry biomass | Pyrolysis bio-oil, heat | Produces the pyrolysis bio-oil used as feedstock for pyrolysis bio-oil fractionation, see section below for details | |
| Pyrolysis oil fractionation | Pyrolysis oil, hydrogen, heat | Kerosene, naphtha | Required pyrolysis oil is produced by non-biogenic waste by default |
| Pyrolysis bio-oil fractionation | Pyrolysis bio-oil, hydrogen, heat | Biokerosene, bionaphtha | Required pyrolysis bio-oil can be produced from dry biomass or biogenic waste |
| Hydrotreatment to HVO (biokerosene) | Oily biomass, hydrogen, network gas | Biokerosene (main product), bionaphtha | Output fractions increased proportionally to account for product output not modelled in the ETM |
| Hydrotreatment to HVO (biodiesel) | Oily biomass, hydrogen | Biodiesel (main product), bionaphtha | Output fractions increased proportionally to account for product output not modelled in the ETM |
| Bio-ethanol production | Wet biomass, network gas | Bio-ethanol | Output of non-energy by-products considered as loss |
| Bio-ethanol-to-jet | Bio-ethanol, hydrogen | Biokerosene (main product), biodiesel | Output fractions increased proportionally to account for product output not modelled in the ETM |
| Methanol-to-jet | Methanol, hydrogen | Kerosene (main product), naphtha | Output fractions increased proportionally to account for product output not modelled in the ETM |
| Biomethanol-to-jet | Biomethanol, hydrogen | Biokerosene (main product), bionaphtha | Output fractions increased proportionally to account for product output not modelled in the ETM |
Oil refineries
Oil refineries convert crude oil into a fixed mix of oil products. The output shares of these products are derived from the energy balance of the start year and remain the same in the future: when the refinery output is adjusted in a scenario, all products scale proportionally. If a region has no refinery in the start year, the output shares of a typical European refinery are used.
Refinery gas
Refinery gas is a by-product of the refining process. It is must-use: its production follows directly from the refinery output and cannot be set separately. The ETM explicitly models the use of refinery gas as fuel in two sectors:
- Refineries: the refineries themselves use refinery gas for their heat demand.
- Chemical industry: the chemical industry (excluding refineries and fertilizers) uses refinery gas for its heat demand.
Currently, refinery gas demand in these two sectors is only included in the Dutch national datasets and the eu2011 dataset. In all other datasets, these demands are 0. As a result, all refinery gas production in these datasets ends up as a loss (see below).
The distribution of refinery gas between these two sectors can be set in the Oil refineries section. In both sectors, refinery gas is used first to meet heat demand. The heat technology sliders of these sectors only distribute the heat demand that remains. If more refinery gas is directed to a sector than its heat demand, the excess is flared and creates excess heat which is considered a loss.
In the start year, supply either exceeds demand or demand is higher than local production. Depending on the region, one of the following applies:
- Production exceeds use: the remaining refinery gas is assumed to be a loss. In the energy balance, this refinery gas is mostly used in power plants and CHPs. This use is not modelled yet and is a known gap.
- Use exceeds production: the shortage of refinery gas is supplied directly from crude oil. The mismatch is caused by streams in the energy balance that are not included in the ETM, such as statistical differences and accounting streams like backflows and primary product receipts.
The size of this surplus or shortage, relative to the refinery output, is the same in the future year as in the start year.
Pyrolysis (bio-)oil
The production and subsequent fractionation of pyrolysis (bio-)oil are closely tied together but can change due to import or exports of the pyrolysis (bio-)oil. There are three different use cases, which are described below.
Domestic production

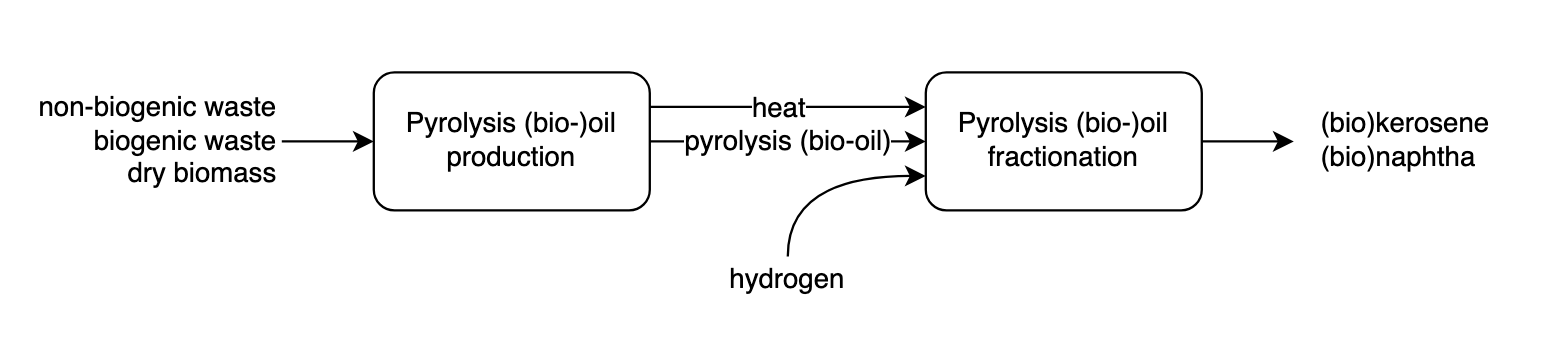

By default, if fractionation of pyrolysis (bio-)oil is set in a scenario, the pyrolysis (bio-)oil will be domestically produced. The heat that is generated in the production of the pyrolysis (bio-)oil is then used in the fractionation (see below.)
Import

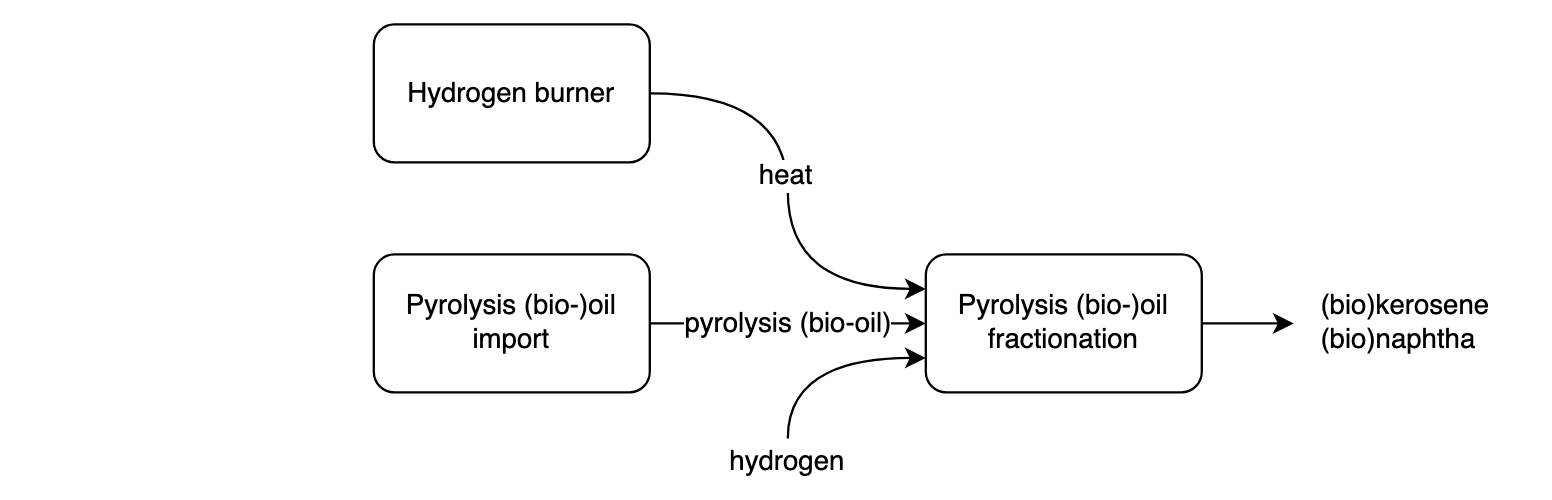

Instead of domestically produced, the pyrolysis (bio-)oil can be imported and then fractionated. The required heat for fractionation is then provided by a hydrogen burner (see below).
Export

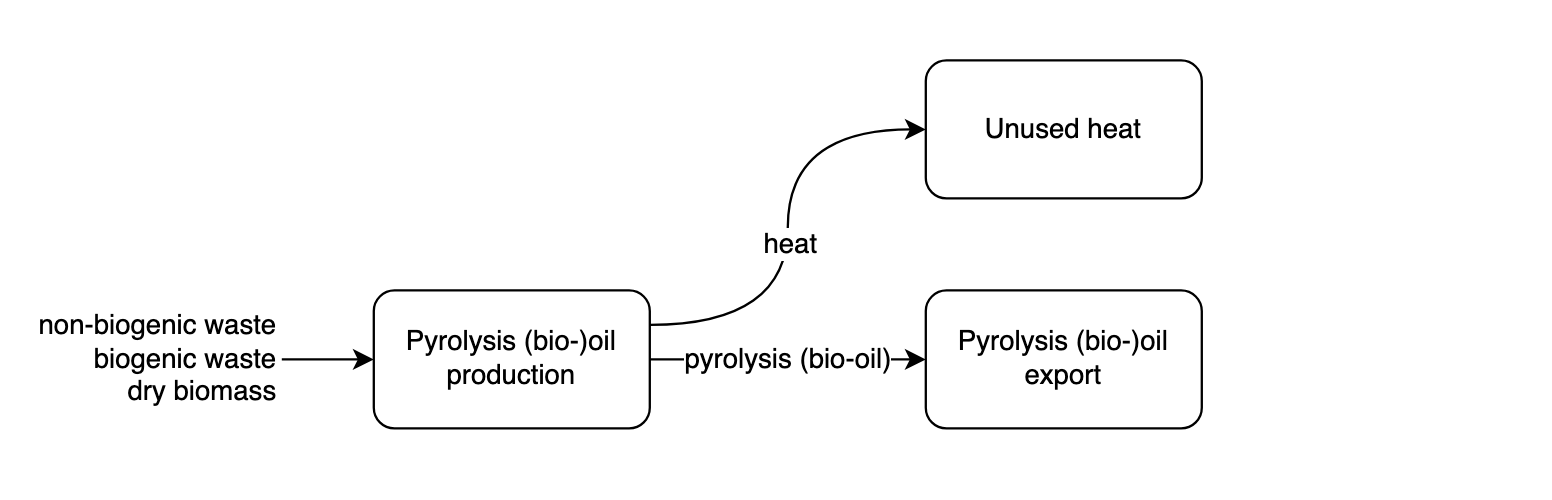

It can also be the case that there is no fractionation but there is production of (bio-)pyrolysis oil for export. In that case the heat that is generated is unused and wasted (see below).
